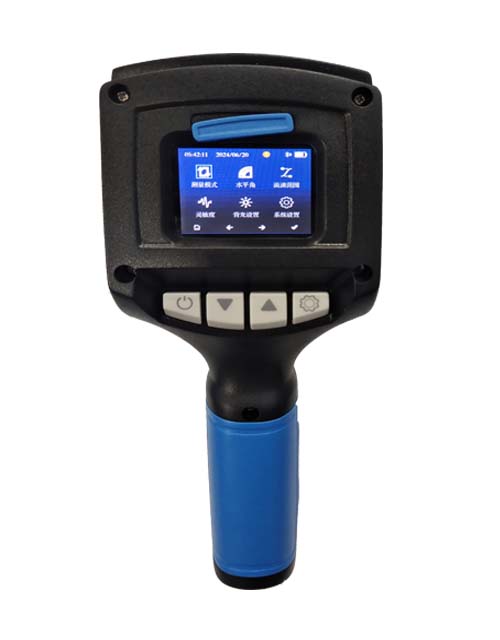

The HR7320 handheld Doppler radar flowmeter uses K-band radar for non-contact flow velocity measurements of rivers, wastewater, sludge, and oceans. It features a compact size, handheld operation, battery-powered design, and ease of use. It is not affected by sewage corrosion or sediment interference, and can perform non-contact measurements within a range of 100 meters, ensuring the safety of the operator.
Compact and portable design, comfortable to hold, suitable for non-contact measurements in complex environments.
Storage of over 1000 measurement results, allowing for data retrieval, deletion, and transmission at any time.
Customizable LCD screen and display program, providing real-time flow velocity, average flow velocity, tilt angle data, and other information during the measurement process.
stomizable LCD screen and display program, providing real-time flow velocity, average flow velocity, tilt angle data, and other information during the measurement process.
Supports bracket fixation and Bluetooth configuration, unaffected by harsh weather conditions, providing more comfortable and convenient operation.
Ultra-low power consumption design, dual-mode power supply (rechargeable lithium battery/dry battery), ensuring all-weather response for emergency measurements.
Velocity Range | 0.05m/s-30m/s |
Frequency | 24GHz |
Range | 100m |
Velocity Accuracy | ±0.01m/s,±1%FS |
Antenna | Planar array antenna, 12°×25° angle automatic compensation |
Compensation Range | Manual compensation in the horizontal direction (0-60°), automatic compensation in the vertical direction (30-70°) |
Protection Level | IP68 |
Functional Modes | Fast measurement mode / Continuous measurement mode |
Power Supply | Rechargeable lithium battery (8000mAh), continuous operation for 9 hours, standby for 26 hours |
Power Modes | Supports dual-mode power supply (rechargeable lithium battery/dry battery), dry batteries can be used for emergency power supply |
Operating Temperature | -35~80℃ |
Product Dimensions | Refer to the product dimension diagram |
Weight | 470g |

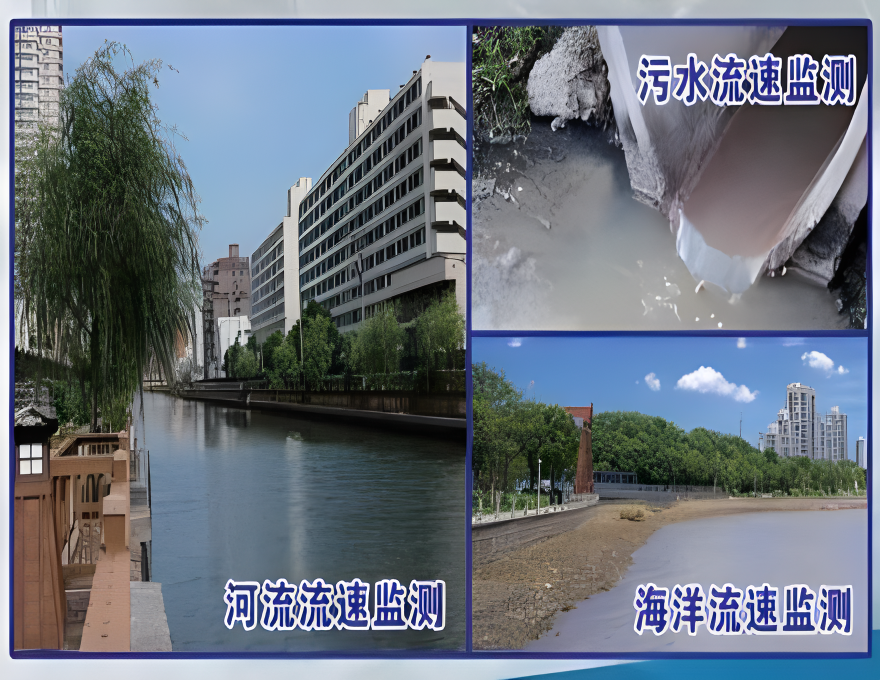

Application Scenarios
² Sewage Flow Velocity Measurement:
² It can be used for measuring the flow velocity of sewage in wastewater treatment plants, sewage pipelines, and sewer systems. Accurate flow velocity data helps in monitoring and managing the sewage treatment process to optimize efficiency.
² River Flow Velocity Measurement:
² In river surveys, water resource management, and environmental monitoring, the flowmeter can be used to measure the flow velocity of rivers. This is crucial for river flow calculation, flood warning, hydrological research, and more.
² Ocean Flow Velocity Measurement:
² For oceanographic research, marine engineering, and ocean resource exploration, the flowmeter can be utilized to measure the flow velocity in the ocean. Understanding ocean flow velocity is essential for studying ocean dynamics, tidal research, marine energy development, and more.
