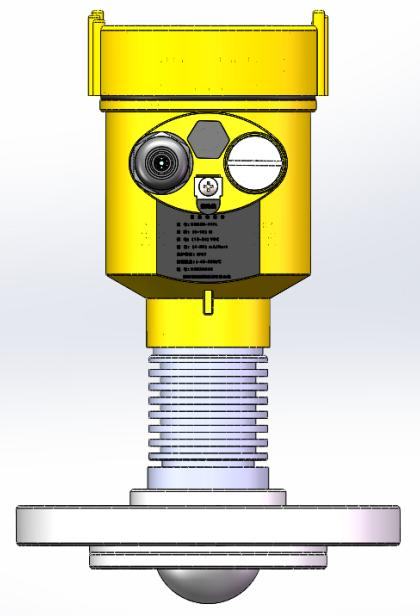

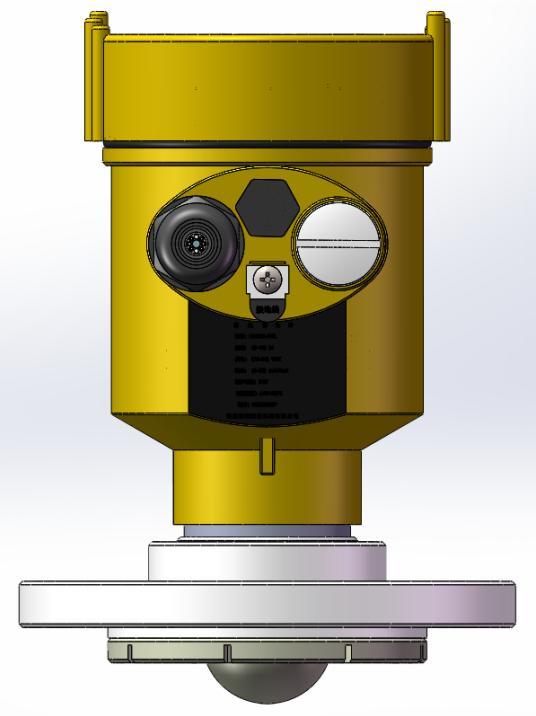

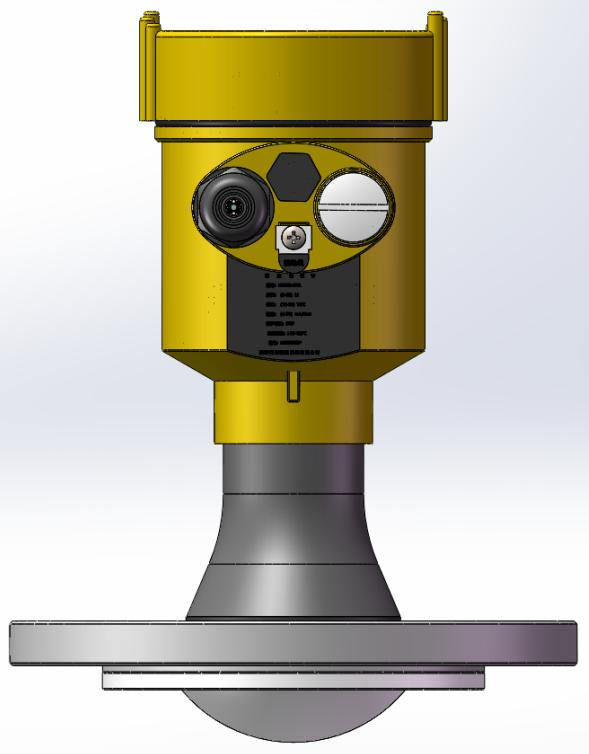

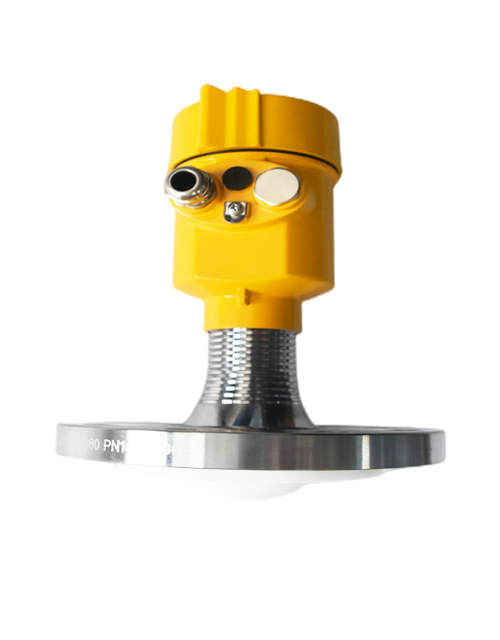

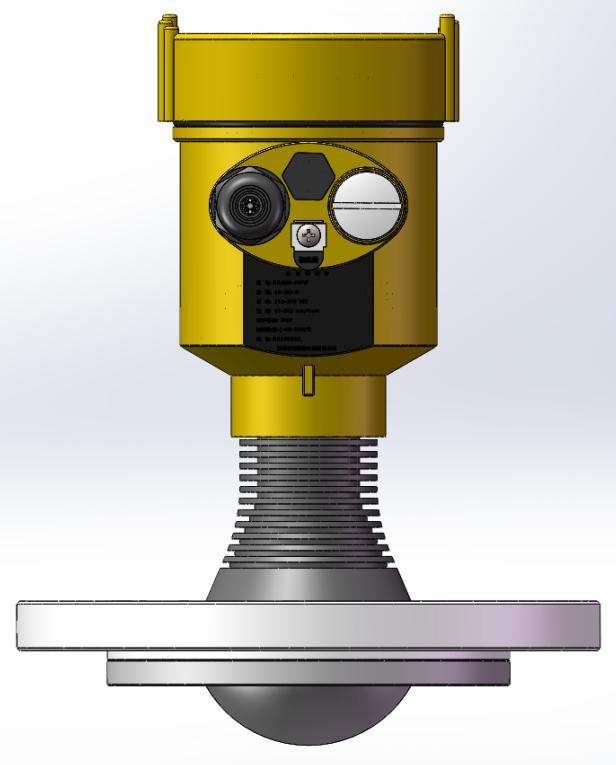

HR7380F 80 GHz Radar Level Transmitter with Corrosion-resistant Flanges

80GHz Radar Level Transmitter is a range of Frequency Modulated Continuous Wave (FMCW) radar products operating in the 76-81GHz frequency range. These transmitters support both 4-wire and 2-wire applications. The products come in multiple models with a measurement range of up to 120m.

Versatile in complex environments: The chip can operate reliably in extremely complex environments with different external and mounting structures.

Minimum 3° antenna beam angle, resulting in reduced impact from environmental interferences during installation, making it more suitable for challenging process conditions such as mixing.

5GHz working bandwidth, allowing for higher measurement resolution and accuracy.

Shorter wavelength, providing better reflection characteristics on solid surfaces, significantly reducing dependence on flange orientation.

Supports remote debugging and upgrading, reducing wait times and improving operational efficiency.

Supports Bluetooth debugging via mobile phones, facilitating on-site maintenance by field personnel.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR7380F
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Technical Specifications

Main Specification
Accuracy	±1mm ， ±2mm、 ±3mm、 ±10mm、 ±15mm
Range	0~5~10M；0~30~75~120M
Long-term Stability	＜0.02％ F.S/Year
Display Resolution	0.05mm
Temperature Characteristic
Oprating Temperature	A:(-40 ～85)℃; B:(-40 ～200)℃; C:(-40 ～350)℃; D:(-40～ 1000)℃
Storage Temperature	-40～ 125℃
Electrical Characteristic
Power Supply	DC8 ～30V（Typical 24V）
Power Supply Protection	Reverse connection protection, overvoltage protection
Output Mode	(4-20)mA, Hart protocol; RS485, MODBUS-RTU protocol
Insulation	100MΩ @50V
Structural Characteristic
Measurement Medium	Liquid or solid particles with a relative dielectric constant greater than 2
Housing Material	Cast aluminum or stainless steel
Cable Material	PVC;PU
Cable Specifications	Outer diameter Φ7.6-10mm, with shielding; custom length
Environmental Characteristics
Protection Level	IP65； IP67
