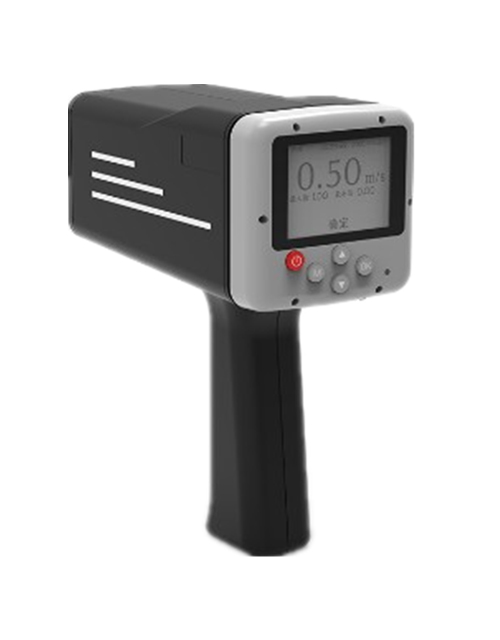

HR7320 hand-held radio (radar) velocity meter uses K-band radar for non-contact flow velocity measurement of rivers, sewage, mud, and ocean. It has the features of compact, hand-held, battery-powered, and easy to handle. It is unaffected by the sewage and sediment, and can be used for non-contact measurement within a measuring range of 100m,which ensures
For one person use, weight less than 700g;
Easy operation, 2000 set data storage for easy management
Non-contact operation, unaffected by sediment and free from water corrosion
Multiple measurement modes, can do one time measurement , duration is 100.0S;
Built-in rechargeable battery for 15 hours of continuous running
Waterproof structure, easy to use in the field.
1. Range:0.03~20m/s
2. Accuracy:±0.03m/s
3. Working temperature: -20~+70℃ ;
4. Radio angle：12°
5. Radio transmission rate：18dBm
6. Radio frequency：24GHz ;
7. Protection level：IP67 ;
8. Measure distance：100m
Portable case, main body
Build-in angle sensor
Build-in thermometer
Charger and rechargeable battery(build-in)
Wireless radar wave flow measurement software and cloud-based hydrological flow data management software(Optional)
Tripod and collimator(Optional)
Application:
River flow rate monitoring, sewage flow rate monitoring, ocean flow rate monitoring, flood control on-site emergency monitoring, etc.
