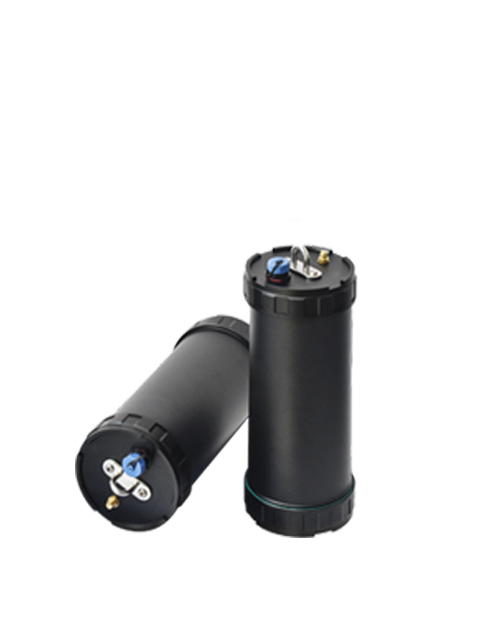

HR8180 RTU adopts high-performance lithium battery power supply, with instrument data acquisition, equipment status monitoring and 4G/3G/2G remote communication and other multi-functions, especially suitable for no utility power supply conditions, waterproof/dustproof working sites. It is widely used in the water supply and drainage/oil/heat/gas pipeline network measurement, groundwater, oilfield long shutdown wells, level measurement and other fields.
IP68 protection, waterproof, moisture-proof, dust-proof
Compact structure, small size, easy to install.
Low power consumption design, current lower to uA to extend battery life.
Compatible with common instrumentation
Self-powered, with its high-capacity lithium battery pack. High-capacity lithium
battery pack power supply, provide sufficient energy.
Technical parameter
u Acquisition interface: 2-way serial port (serial port 1 RS232/RS485 optional, serial port 2 RS485)
u Data format - 8-bit data bits, 1-bit stop bit, parity bit (odd, even, none) can be set
u Baud rate - 1200, 2400, 4800, 9600, 19200, 38400, 57600 (Bit/S) optional
u Communication: GPRS, SMS, Bluetooth
u Communication BER: ≤ 10-6
u Sleep current: ≤ 30uA/7.2V
u Power Supply voltage: DC 7.2V~30V; default 12V.
u Dimension: 210*85mm
Dimension: 210*85mm
u SIM card: Micro SIM
u Working Environment: Temperature: -40~+85℃;
Humidity: ≤95%.
1. External cable 2. Battery 3. Test Serial Port 4. Field Installation Ring 5. External Antenna Interface 6 . Circuit Boards
