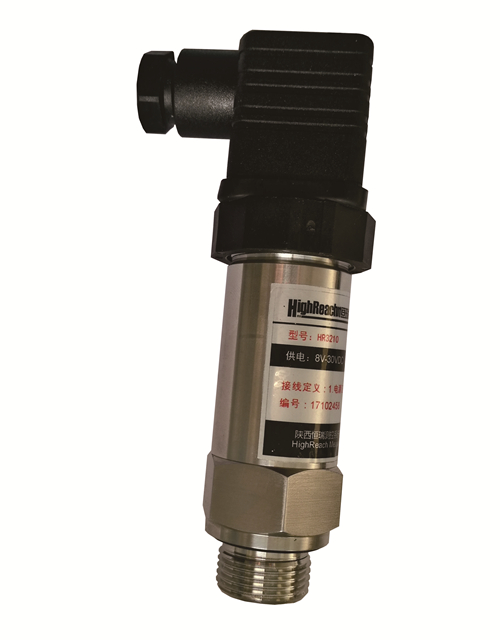

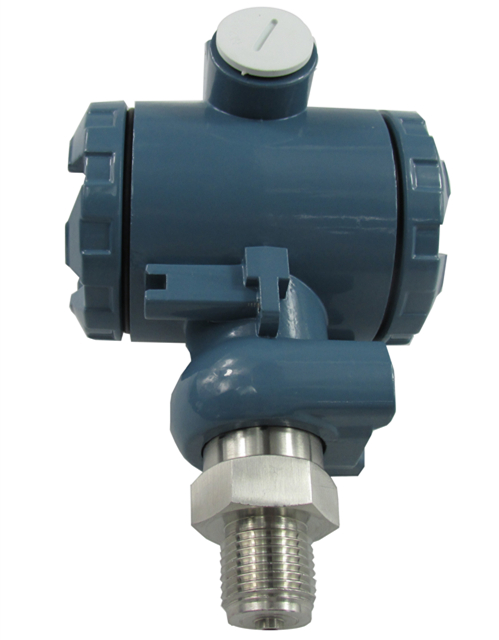

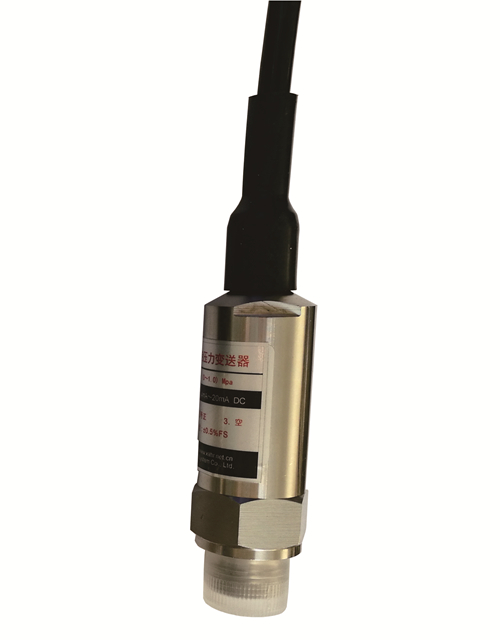

HR320 series intelligence pressure transmitter uses top quality pressure components with mixed signal processing technology and unique compensation methods to realize F S digital linearity correction, full temperature digital temperature compensation to improve the precision of the transmitter. Circuit part with power and watchdog monitor improve the reliability of the whole transmitter.
Rich product series, they are widely used in pressure measurement of oil and gas industry, hydrology and water conservancy, geological prospecting, shipping industry etc.
Digital correction
High stable pressure sensing element
With strong over load, anti-corrosion
Anti-surge, electromagnetic interference
Reverse power protection, over voltage protection
Factory calibration, no need of potentiometer adjustment, with high reliability
| Main performance indicators | |
| Accuracy | ±0.25%（typ.），±0.5% F·S（max.） |
| Range | -0.1～0 --------- 0.01～100 MPa |
| Long-term stability | 0.1%F·S/year |
| Overload capability | 1.5 X F·S |
| Pressure type | Gauge pressure (atmospheric reference), absolute pressure, gauge pressure (sealed reference) |
| Temperature characteristics | |
| Compensation temperature | 0～70℃ |
| Operating temperature | -20～85℃ |
| Storage temperature | -40～125℃ |
| Electrical characteristics | |
| Power Supply | DC12～30V |
| Power Protection | Anti-reverse connection, over voltage protection |
| Output method | Two-wire system 4～20mA，4～20mA+HART（Optional） |
| Three-wire 0/1～5V/10V | |
| Load | (U-12)/0.02（Ω）（output） |
| Structural characteristics | |
| Measuring medium | Compatible with stainless steel and fluoro rubber |
| Pressure interface | M20*1.5 male, G1/2 male, or customized |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L stainless steel |
| Cable material | Polyurethane or PVC optional |
| Environmental characteristics | |
| Protection level | IP65 |
| Explosion-proof grade | ExiaⅡC T6 |
| Insulation | 100MΩ@50V |
| Vibration | 20g, 20～5000Hz |
| Shock | 20g, 11ms |
