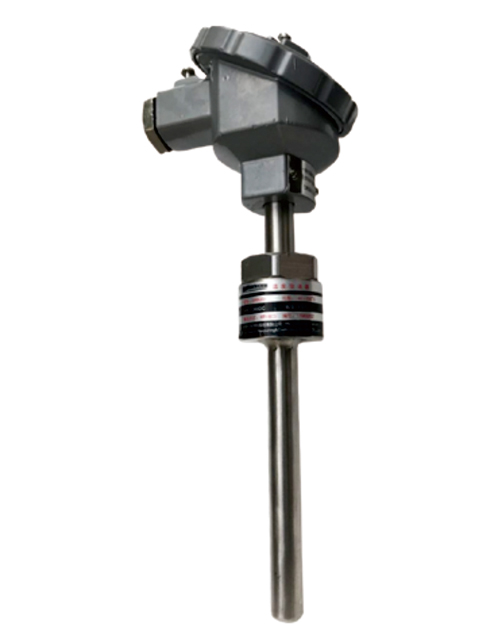

HR6200 plug-in temperature transmitter uses imported temperature sensor, which could transform RS485 or 4～20mA standard signal by build-in microprocessor. It adopts 316L stainless steel housing, temperature probe on the front end, we can also customize it for our clients as required.
It can be used in many applications to measure temperature.
High accuracy and precision
5-30V power supply
RS485 standard MODBUS-RTU protocol, anti-reverse connection, anti-surge and over voltage protection
| Main performance specification | |
| Accuracy | ±0.1℃；±0.2℃ |
| Resolution | 0.01℃ |
| Range | -45～150℃ |
| Output frequency | 1s |
| Working temp. | -45～130℃ |
| Storage temp. | -50～150℃ |
| Electrical Specification | |
| Power supply | 24VDC（5～30V） |
| Communication interface Protection | （2KV）surge protection |
| Load | 32 node |
| Output method | RS485 interface ,MODBUS-RTU protocol |
| Construction Specification | |
| Housing material | 304 or 316L stainless steel |
| Cable material | PVC or PU |
| Probe Weight | About 100g |
| Protection level | IP65 |
| No. | Color | Definition |
| 1 | Red | 24V+ |
| 2 | Blue | RS485+ |
| 3 | Green | RS485- |
| 4 | Yellow | GND |
