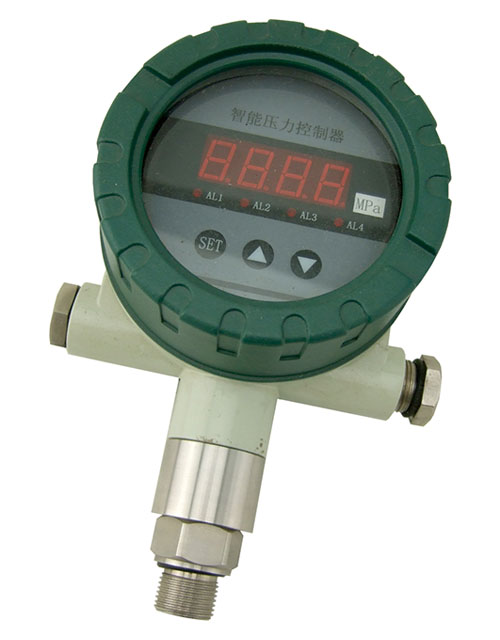

HR5300 digital pressure controller is an integrated multi-functional transmitter for pressure measuring and controlling with features of measurement display and control. HR8600 adopts high quality pressure sensor highly integrated AFE adjusts voltage signal to compensate and amend microprocessor the final result will display on the LCD and output control signal according to setting conditions. It has the function of power and watchdog monitoring reliable simple and convenient.
The series products are widely used in Water electricity oil chemical mechanical hydraulic and other industries to measure display and control fluid medium.
Display and operate on spo
Key operation easy to use
With strong over load anti-corrosion
With strong over load anti-corrosion
Top quality high temperature pressure sensor
Digital correction；Reverse power protection over voltage protection
| Main performance indicators | |
| Display Accuracy | ±0.25%(typ.)，±0.5% F·S（max.） |
| Operation Accuracy | ±0.5% F·S |
| Range | -0.1～0～0.01～100MPa |
| Long-term stability | 0.1%F·S/year |
| Overload capability | 3X F·S |
| load capability | (U-9)/0.02（Ω） |
| Pressure Type | Gauge pressure (atmospheric reference) absolute pressure gauge pressure (sealed reference) |
| Temperature characteristics | |
| Compensation temp. | 0～70℃ |
| Working temp. | -20～85℃ |
| Storage temp. | -40～85℃ |
| Electrical characteristics | |
| Power Supply | DC12～30V （typ. 24V） |
| Power Protection | Anti-reverse connection over voltage protection |
| Display |
4-digit LED or LCD display |
| Display range | -1999～9999 |
| Controlling contact no. | 2 |
| Load | 220VAC/3A 30VDC/3A |
| Contact life | 1000000次 |
| Max. Consumption | 0.8W |
| Construction characteristics | |
| Measuring medium | Compatible with stainless steel and fluoro rubber |
| Pressure interface | M20*1.5 G1/2 male |
| Housing material | 316L stainless steel |
| Environmental characteristics | |
| Protection level | IP65 |
| Explosion-proof grade | ExiaⅡC T6 |
| Insulation | 100MΩ@50V |
| Vibration | 20g 20～5000Hz |
| Shock | 20g 11ms |
