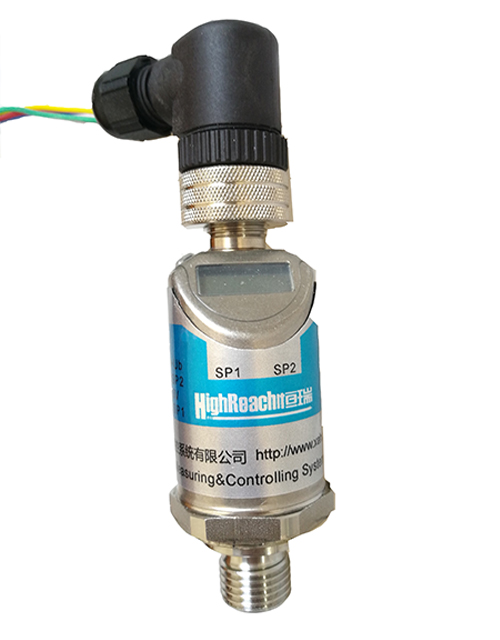

HRDP5500 adjustable pressure switch is an integrated multi-functional product designed and produced for large-scale equipment such as domestic machine tools. The product uses a wide temperature zone with high stability and pressure sensitive components.
No. processing integrating measurement display and control; outputting control signals and pressure digital signals simultaneously according to set conditions; safe and reliable; easy to operate and convenient to use. The product range is rich widely used in hydropower tap water petroleum chemical machinery hydraulic and other industries to measure display and control the pressure of fluid medium.
Digital error correction
Live display and control
Button adjustment easy to use
Anti-surge electromagnetic interference
Wide temperature zone high stability pressure sensitive component
| Main performance indicators | |
| Display accuracy | ±0.25%（typical），±0.5% F·S（maximum） |
| control precision | ±0.5% F·S |
| Range | -0.1～0～0.01～100MPa |
| Long-term stability | 0.1%F·S/year |
| Overload capability | 3X F·S |
| Output | Two-way PNP or NPN (optional combination) |
| Pressure type | Gauge pressure absolute pressure sealed reference pressure |
| Temperature characteristics | |
| Compensation temperature | 0～70℃ |
| Operating temperature | -20～85℃ |
| Storage temperature | -40～85℃ |
| Electrical characteristics | |
| Supply voltage |
5～36V DC（typical 24V） |
| Power protection | Anti-reverse connection over voltage protection |
| Display | 4 digital |
| Display range | -1999～9999 |
| Control node | 2 node |
| Output current | 250mA |
| Current consumption | <35mA |
| Output response | <10ms |
| Structural characteristics | |
| Measuring medium | Compatible with stainless steel and fluoro rubber |
| Pressure interface | M20*1.5 male G1/2 male |
| Housing material | 316L stainless steel |
| Environmental characteristics | |
| Protection level | IP65 |
| Insulation | 100MΩ@50V |
| Vibration | 20g 20～5000Hz |
| Shock | 20g 11ms |
